Multi-Model Architectures: How Top AI Products Use Multiple LLMs

If you're building an AI product on a single model from a single provider, you're doing the equivalent of running your entire production infrastructure on one server. It works — until it doesn't. The most sophisticated AI products in production today use multiple models, orchestrated through routing layers, cascading pipelines, and task-specific specialization. This isn't over-engineering. It's the architecture that survives contact with real users at scale.

Why Single-Model Is a Liability

Let's be blunt about the risks of going all-in on one model:

• Provider risk: OpenAI had a major outage in late 2024 that took down every product built exclusively on their API. If your product is GPT-only, an OpenAI outage is your outage. This isn't hypothetical — it's happened multiple times.
• Pricing risk: API pricing can change with a quarter's notice. If your unit economics are tuned to GPT-4o at $2.50/million tokens and the price doubles, your margins evaporate overnight.
• Performance risk: Model updates can change behavior. GPT-4 Turbo's initial release showed regressions on certain coding tasks compared to the original GPT-4. If you've built evaluation pipelines and prompts optimized for one model's idiosyncrasies, a model update can break your product.
• Capability ceilings: No single model is best at everything. Claude excels at nuanced analysis and long-context reasoning. GPT-4o is strong at structured outputs and function calling. Gemini handles multimodal inputs natively. Mistral models offer the best cost-performance ratio for many tasks. Betting on one means leaving performance on the table.

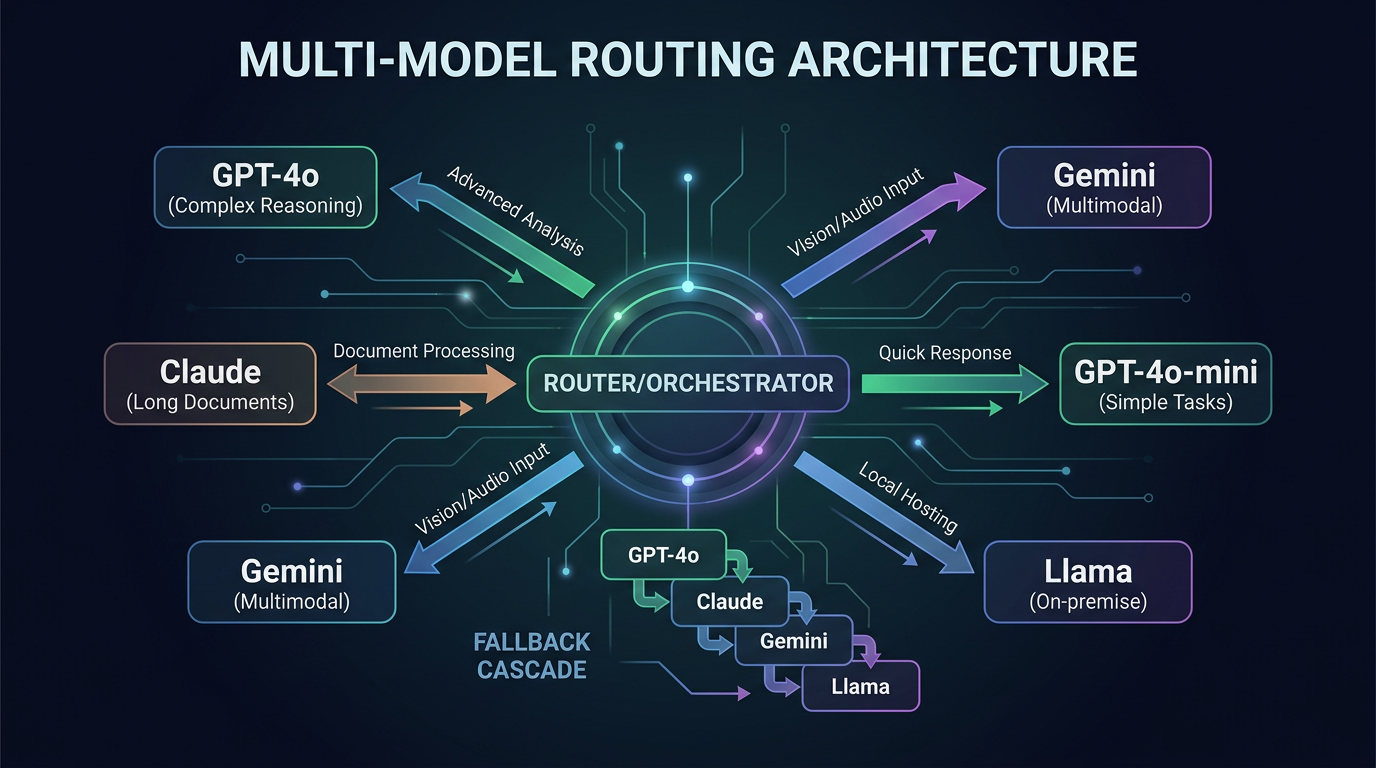

Pattern 1: Model Routing

The simplest multi-model pattern: a routing layer that sends different requests to different models based on the task type, complexity, or cost constraints.

How it works

A classifier (which can itself be a small, fast model or a rules-based system) analyzes the incoming request and routes it to the most appropriate model. Think of it as a load balancer for intelligence.

Real-world implementation

Consider a customer support AI product. Not every ticket requires GPT-4-class reasoning:

• Tier 1 (FAQ/simple): Route to a fine-tuned Mistral 7B. Cost: ~$0.15/million tokens. Latency: ~100ms. Handles 60% of tickets.
• Tier 2 (moderate complexity): Route to Claude 3.5 Haiku or GPT-4o-mini. Cost: ~$0.50/million tokens. Latency: ~300ms. Handles 30% of tickets.
• Tier 3 (complex/sensitive): Route to Claude 3.5 Opus or GPT-4o. Cost: ~$10/million tokens. Latency: ~800ms. Handles 10% of tickets.

The blended cost is dramatically lower than sending everything to the frontier model, and user-perceived quality remains high because the complex cases still get top-tier reasoning.

"The goal of model routing isn't to use the cheapest model everywhere — it's to use the right model for each task. Overspend on the hard problems, save on the easy ones."

Building the router

The router itself can be implemented in three ways, each with increasing sophistication:

• Rules-based: If the query contains keywords like "refund" or "cancel," route to Tier 1. If it mentions legal terms or escalation, route to Tier 3. Simple, transparent, but brittle.
• Classifier-based: Train a small classification model (BERT-class or even a logistic regression on embeddings) to predict query complexity. More robust, handles edge cases better.
• LLM-as-router: Use a fast, cheap LLM to analyze the query and decide which model should handle it. This is recursive and elegant but adds latency and cost. Best for complex routing decisions.

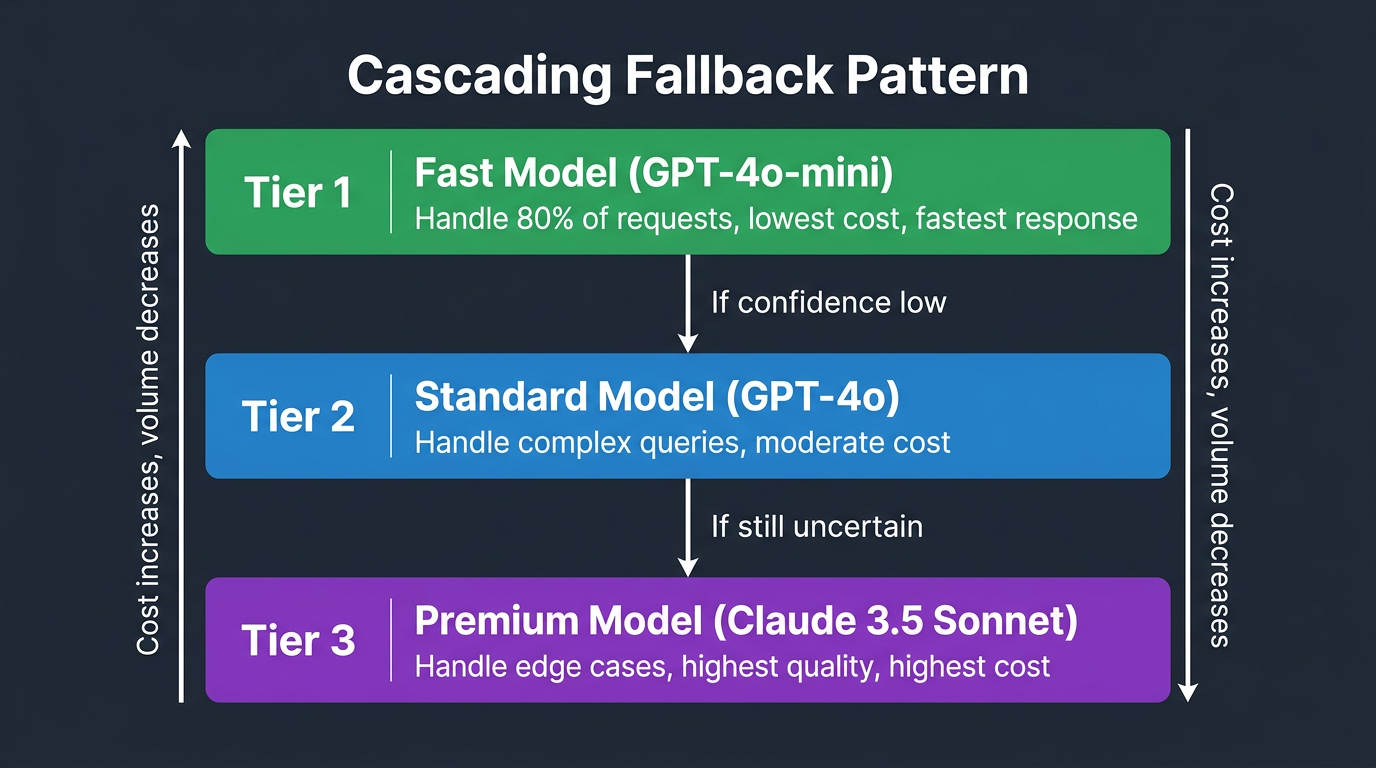

Pattern 2: Model Cascading

Cascading is routing's more sophisticated cousin. Instead of sending a request to one model, you start with a cheap/fast model and escalate to a more capable one only if the first model's confidence is below a threshold.

How it works

Step 1: Send the request to a small, fast model. Step 2: Evaluate the response quality (confidence score, output validation, consistency check). Step 3: If quality passes the threshold, return the response. If not, escalate to a larger model.

Why cascading wins

For most AI products, 70-80% of requests are "easy" — they can be handled well by a small model. Cascading captures this distribution naturally. You pay frontier-model prices only for the 20-30% of requests that genuinely need it.

The key is the confidence evaluation step. Common approaches include:

• Self-consistency: Run the small model 3 times. If all 3 answers agree, confidence is high. If they diverge, escalate.
• Output validation: If the task has a structured output (JSON, code, SQL), validate the output syntactically. If it's malformed, escalate.
• Perplexity/entropy: If the model's token-level confidence is low (high entropy in output probabilities), escalate.

Pattern 3: Specialized Model Ensembles

This is the pattern used by the most ambitious AI products. Different models handle different sub-tasks within a single user interaction, and an orchestration layer combines their outputs.

Real-world example: AI-powered research assistant

A single user query — "Analyze the competitive landscape for enterprise AI observability tools" — might invoke:

• Retrieval model: A fine-tuned embedding model searches internal documents and external sources for relevant data.
• Synthesis model: Claude 3.5 Opus processes the retrieved documents and generates a structured analysis (Claude's long-context window is ideal here).
• Fact-checking model: A smaller model cross-references claims in the synthesis against source documents, flagging unsupported statements.
• Formatting model: GPT-4o converts the analysis into a polished report with charts, tables, and executive summary (GPT-4o's structured output capabilities are strong here).

No single model does all of this optimally. The ensemble approach lets each model play to its strengths.

Pattern 4: Fallback Chains

The simplest reliability pattern: if Model A fails (timeout, error, rate limit), fall back to Model B. If B fails, fall back to Model C.

This sounds trivial but requires careful implementation:

• Prompt compatibility: Different models have different system prompt formats, function calling schemas, and output tendencies. Your fallback chain needs prompt adapters for each model.
• Output normalization: If your primary model returns JSON with key "analysis" and your fallback returns it as "result," your downstream code breaks. Normalize outputs at the orchestration layer.
• Quality monitoring: Track which model actually served each request. If your fallback model is serving 40% of traffic, you have a reliability problem with your primary — or your primary's rate limits are too low.

The Orchestration Layer: The Unsung Hero

All of these patterns require an orchestration layer — the software that sits between your product and the models. This layer handles:

• Request classification and routing
• Prompt management and versioning (different models need different prompts for the same task)
• Response evaluation and quality gates
• Fallback logic and retry handling
• Cost tracking and budget enforcement (set per-model and per-user spend limits)
• Observability: latency, token usage, error rates, model attribution per request

Tools like LiteLLM, Portkey, and Martian are emerging to handle this orchestration layer. But many mature teams build their own, because the routing logic is deeply coupled to their product's domain.

Cost Optimization Through Multi-Model

Let's put real numbers on this. Consider a product handling 1 million AI requests per day:

• Single-model (all GPT-4o): ~$10,000/day ($3.65M/year)
• Routed (60% small / 30% mid / 10% frontier): ~$1,800/day ($657K/year)
• Savings: 82% cost reduction with negligible quality impact on the 60% of easy requests

This is not a hypothetical. This is the math that every AI product at scale eventually does, and it's why multi-model isn't a luxury — it's a requirement for sustainable unit economics.

When NOT to Use Multi-Model

Multi-model architectures add complexity. Don't adopt them prematurely:

• Pre-PMF: If you're still validating whether users want the AI feature at all, use one model. Optimize later.
• Low volume: If you're handling fewer than 10,000 requests per day, the cost savings don't justify the engineering overhead.
• Uniform difficulty: If all your requests are roughly the same complexity (rare, but possible in narrow domains), routing doesn't help.

Conclusion: The Future Is Polyglot

Just as modern software architectures are polyglot (the right language for the right service), modern AI architectures are polyglot too — the right model for the right task. The teams that master multi-model orchestration will build AI products that are faster, cheaper, more reliable, and more capable than those locked into a single provider.

Start simple. Add routing when costs hurt. Add cascading when quality varies. Add specialization when one model can't do everything you need. The architecture should evolve with your product, not precede it.

References & Further Reading

• Anyscale — Comprehensive Guide to Building LLM Applications
• LiteLLM — Multi-Provider LLM Gateway Documentation
• Databricks — LLM Inference Performance Engineering
• FrugalGPT: How to Use Large Language Models While Reducing Cost (Chen et al., 2023)
• Martian — Intelligent Model Router
